DB-R2032UはCR2032を使用している機器向けのダミーコイン電池です。
CR2032で駆動する電子機器にDB-R2032Uを取り付け、USB Type-CコネクタにUSB電源を接続することで電気を供給することができます。
CR2032で駆動する機器をUSB電源から駆動させたい時や、電池交換する手間を無くし機器を長時間駆動させたい場合等に使用できます。

【基本スペック】
電源入力：USB Type-C
出力電圧：3.0V
最大定格電流：300mA
動作温度：-20～80℃

※DB-R2032UはUSB Type-Cコネクタおよびポッティング加工が標準で施されています。

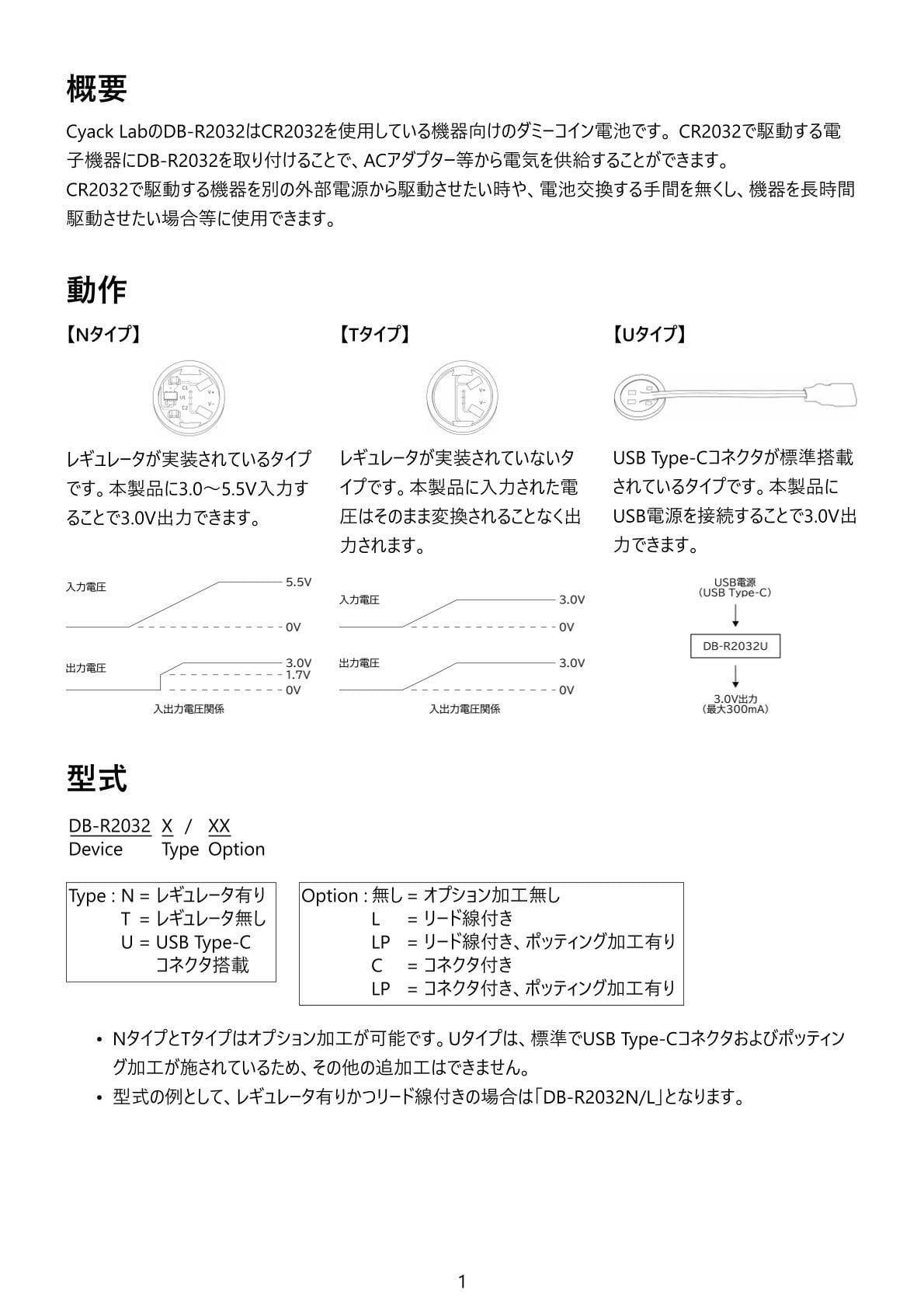

※カタログ及びデータシートは以下URLから参照してください。
https://cyacklab.com/catalogs-and-datasheets/

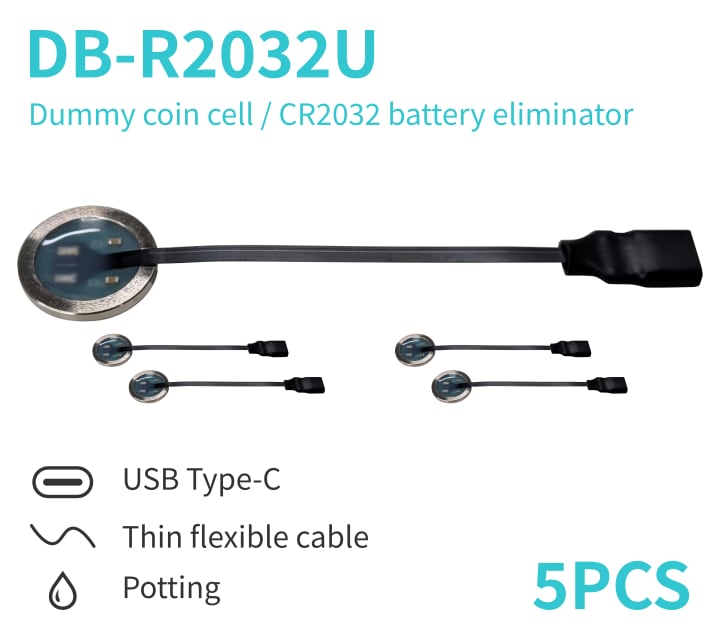

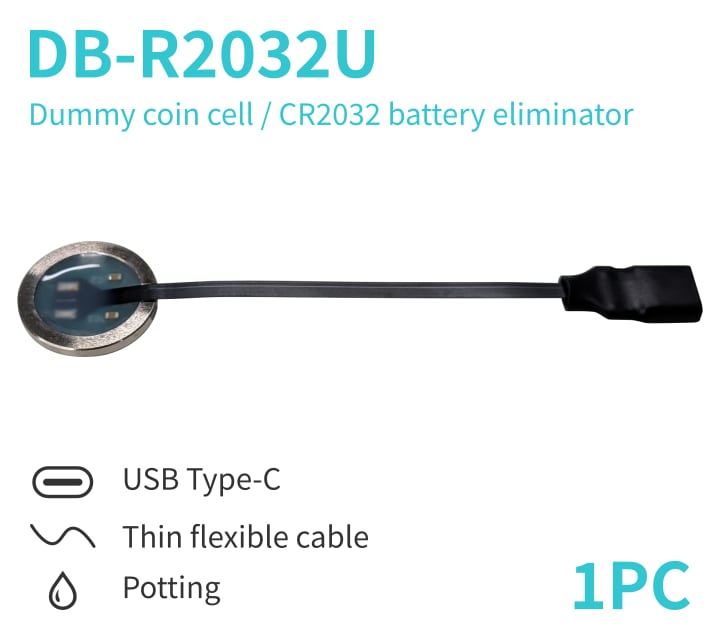

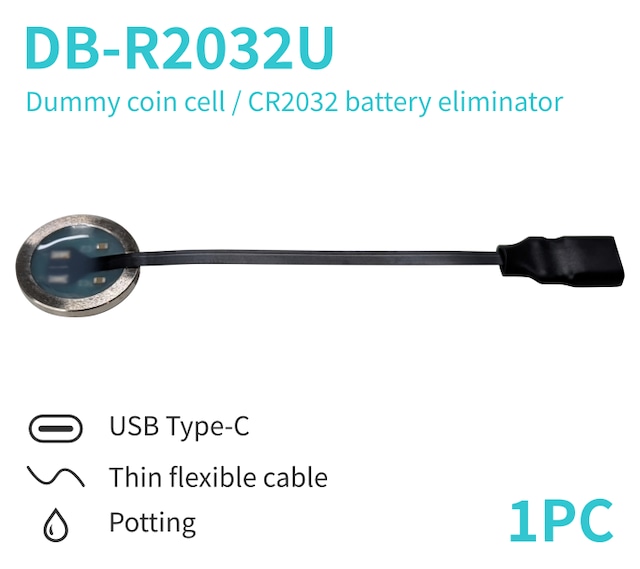

DB-R2032U is a dummy coin cell designed for devices that use CR2032 batteries.
By installing the DB-R2032U in a CR2032-powered electronic device and connecting a USB power source to its USB Type-C connector, the device can be powered from the USB power source.

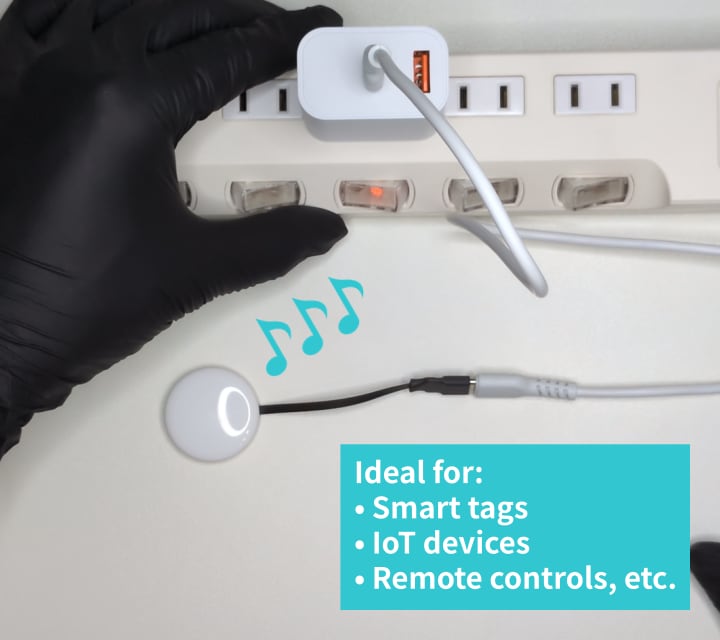

It is useful when operating CR2032-powered devices from a USB power source or when continuous operation is required without the need for battery replacement.

[Basic Specifications]
Power Input: USB Type-C
Output Voltage: 3.0 V
Maximum Rated Current: 300 mA
Operating Temperature: −20–80 °C

*The DB-R2032U is supplied with a USB Type-C connector and potting as standard.
For the catalog and datasheet, please refer to the following URL:
https://cyacklab.com/en/documents-en/

======================================
